Injection molding is a significant manufacturing method. Typically, it produces complex plastic parts used in autos and electronics, among other applications. Among them, clamping force is a critical step in this process. This force holds the mold halves tight during injection, ensuring the quality and standard of the finished items. This article will advance the understanding of the clamping forces in injection molding, how to determine them, as well as why it is essential to collaborate with the top injection molding company.

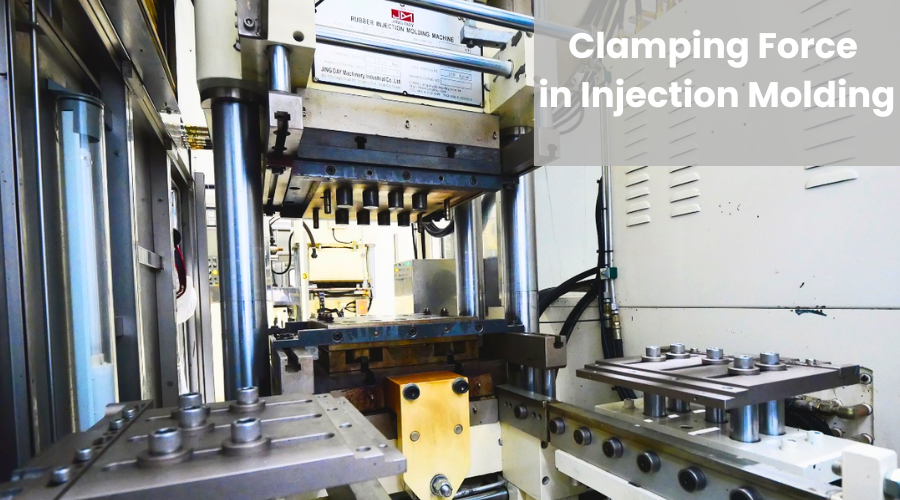

What Is Clamping Force in Injection Molding
Clamping force refers to the pressure exerted both during the injection molding process and when the mold halves are gripped while moving the mold toward its final place. It is critical that it remains stationary for it will guarantee that the mold will not crack open as a result of the high pressure which is exerted by forcing the liquefied plastics into the mold. The clamping force is designed mainly to prevent the opening of the die in order to enable the different injection, cooling, and solidifying stages to be complied with in guaranteeing the accuracy and quality of the end product.

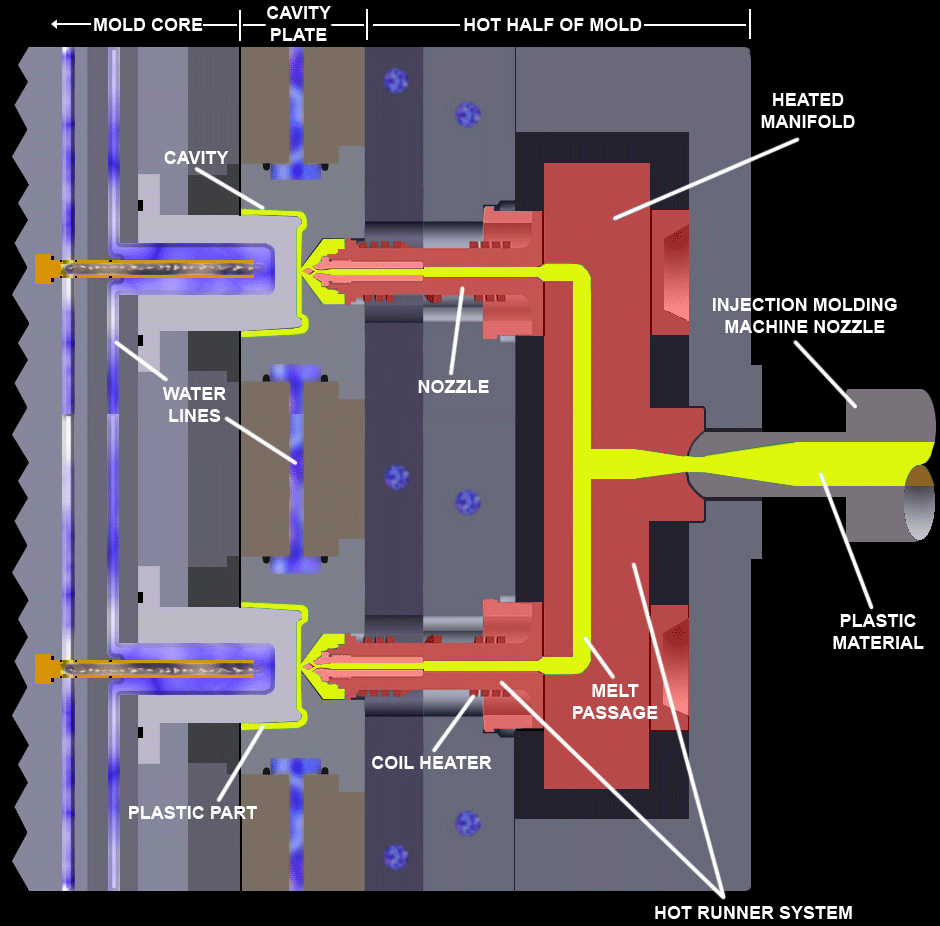

In the injection molding process, at high pressure, the molten plastic is allowed to be injected into the cavity of a mold. While filling, the plastic applies force to the mold wall. Insufficient clamping force will tend to open the mold slightly, which has caused various product defects like flash. On the other hand, too much clamping force may also lead to mold and injection molding machine damage. It then becomes relevant that a proper amount of clamping force should be developed when manufacturing quality and consistent plastic parts.
How to Calculate Clamping Force: Essential Factors
Proper calculation of clamping force in an injection molding process is essential for product quality. The basic formula for the calculation of clamping force is: Force (kg) = Cavity Pressure (kgf/cm²) × Total Projected Area (cm²)
- Cavity pressure: The normal pressure that the molten plastic exerts inside a mold cavity, and its magnitude usually lies between 300 and 800 kgf/cm² depending on material and part design.
- Total Projected Area: This may be considered to be the area of the mold cavity exposed to the molten plastic. It may typically include the perimeter of the part besides runners or sprues in a mold.
For example, with a cavity pressure of 500 kgf/cm² and a total projected area of the part of 100 cm², the required clamping force would be: Force = 500 kgf/cm² × 100 cm² = 50,000 kg (or 50 metric tons)
However, this formula itself does not decide the clamping force calculation. There are a few other deciding factors that also decide the clamping force for a particular injection molding process:
- Mold Size: Larger molds usually require more clamping force because they have a bigger projected area. The mold size affects the distribution of clamping force, necessitating adjustments to avoid flash or other defects.
- Part Complexity: The more intricate the design of the part, the more variations there will be in the pressure distribution within the mold cavity. Complex parts might need higher clamping force to ensure the mold stays closed during injection.
- Material Properties: Different materials have varying flow characteristics and cavity pressures. For instance, high-viscosity materials may require higher clamping forces due to the increased pressure during injection.
Manufacturers can optimize the injection molding process and improve product quality by taking these parameters into account and performing accurate clamping force calculations.
Impact of Clamping Force on Product Quality
Clamping force is one of the most important factors that define product quality in injection molding. Insufficient clamping force will cause the following problems:
- Flash: When the mold halves are not well clamped, molten plastic flows out of the intended mold cavity, and this forms an undesirable extra material known as flash. This also makes the product less aesthetic looking and also adds extra steps of processing the product thereby making the production expensive in terms of money.
- Incomplete Filling: Lack of adequate clamping pressure will mean that an injection will act to open the mold just a little and hence lead to an incomplete pack of the mold cavity. This leads to defects like the short shots, whereby the part is not well-formed due to insufficient material.
On the other hand, excessive clamping force can be equally detrimental:
- Mold Damage: Excessive pressure on the clamps could be detrimental to the mold in the long run, particularly at the half-mating lines. Mold development is undesirable because it is expensive to remove, and it can lead to more time spent pausing production.
- Internal Stresses: Excessive force can create internal stresses inside the structure of the plastic part, decaying the mechanical characteristics of the material and causing deformation, such as warping or cracking of the material.
Optimizing Clamping Force: Partnering with the Best Injection Molding Company
Determining the ideal clamping force is not a simple process. It necessitates an understanding of the molding process, material qualities, and mold design. This is when the expertise of a reputable injection molding firm is required.
HordRT stands out as the best injection molding company in the industry. Over the years, the HordRT has remained abreast with the latest technology in the market, and this makes it easy for the company to control force to optimize its injection molding processes right from the clamping force. We have modern brand injection molding machines with an efficient clamping force control method that keeps the mold closed effectively without causing harm.
Manufacturers who collaborate with HordRT can profit from our knowledge of clamping force calculation and optimization. Our professional staff takes into account all contributing elements, such as mold size, part complexity, and material qualities, to ensure that the appropriate clamping force is used for each project. This painstaking attention to detail yields high-quality, defect-free goods that precisely fulfill the customer’s specifications.
Conclusion
Clamping force is an important element in the injection molding process, influencing product quality and uniformity. Working with an experienced injection molding business, such as HordRT, can make a huge difference in optimizing clamping force and, ultimately, producing improved product quality. If you’re looking to ensure the highest level of quality in your injection molded products, reach out to us today to discover how our exceptional services can benefit your manufacturing process.
